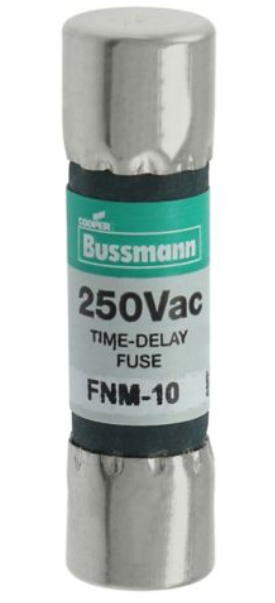

FNM time-delay 13/32" x 1-1/2" supplemental fuse
Time-delay supplemental fuse.
Color code green (250 Vac max).
Agency information
• UL Listed, Std. 248-14, Guide JDYX; File E19180, CSA Certified,
Class 1422-01, File 53787, RoHS compliant, CE
Features
• Color coded for 250 Vac maximum
• Melamine tube construction with nickel-plated brass endcaps
Typical applications
• Circuits with high inrush currents (motor/transformer loads)
• Supplemental protection for 125 Vac and 250 Vac inductive circuits
