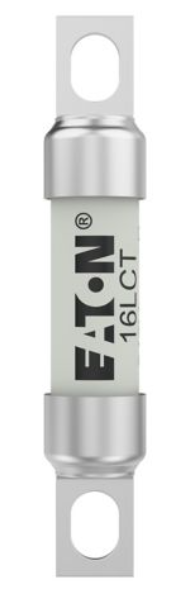

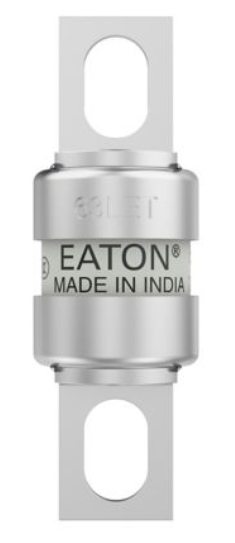

LCT, LET BS88
BS88 style bolted tag high speed fuses for the protection of DC
common bus, DC drives, power converters/rectifiers and reduced
rated voltage starters. Low watts loss in a compact size.
common bus, DC drives, power converters/rectifiers and reduced
rated voltage starters. Low watts loss in a compact size.
Ratings
• Volts
• LCT 240 Vac/150 Vdc (IEC), 250 Vac/150 Vdc (UL)
• LET 280 Vac/150 Vdc (UL, 25-160 A), 250 Vac/150 Vdc (UL 180 A)
• Amps 6-180 A
• IR
• 200 kA RMS Sym.
• 50 kA DC at 125 Vdc
• 100 kA at 80 Vdc (70-1000 A)
Operating class aR.
Agency information
• Designed and tested to BS88 Part 4 and IEC 60269 Part 4
• UL Recognized*
• CCC (LCT only)
• CE
* All fuses have been tested at 318 Vac. Consult Bussmann series product
representative for UL Recognized status.
• Volts
• LCT 240 Vac/150 Vdc (IEC), 250 Vac/150 Vdc (UL)
• LET 280 Vac/150 Vdc (UL, 25-160 A), 250 Vac/150 Vdc (UL 180 A)
• Amps 6-180 A
• IR
• 200 kA RMS Sym.
• 50 kA DC at 125 Vdc
• 100 kA at 80 Vdc (70-1000 A)
Operating class aR.
Agency information
• Designed and tested to BS88 Part 4 and IEC 60269 Part 4
• UL Recognized*
• CCC (LCT only)
• CE
* All fuses have been tested at 318 Vac. Consult Bussmann series product
representative for UL Recognized status.
