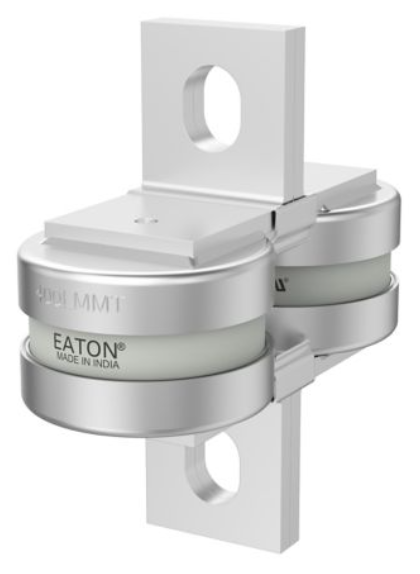

LMT, LMMT BS88
BS88 style bolted tags high speed fuses for the protection of DC
common bus, DC drives, power converters/rectifiers and reduced
rated voltage starters. Low watts loss in a compact size.
common bus, DC drives, power converters/rectifiers and reduced
rated voltage starters. Low watts loss in a compact size.
Ratings
• Volts
• 240 Vac/150 Vdc (IEC)
• 250 Vac/150 Vdc (UL)
• Amps 160-900 A
• IR
• 200 kA RMS Sym., 40 kA at 150 Vdc (IEC)
• 200 kA RMS Sym., 50 kA at 150 Vdc (UL)
Operating class aR
Agency information
• Designed and tested to BS88 Part 4 and IEC 60269 Part 4
• UL Recognized*
• CCC
• CE
* All fuses have been tested at 318 Vac. Consult Bussmann series product
representative for UL Recognized status.
• Volts
• 240 Vac/150 Vdc (IEC)
• 250 Vac/150 Vdc (UL)
• Amps 160-900 A
• IR
• 200 kA RMS Sym., 40 kA at 150 Vdc (IEC)
• 200 kA RMS Sym., 50 kA at 150 Vdc (UL)
Operating class aR
Agency information
• Designed and tested to BS88 Part 4 and IEC 60269 Part 4
• UL Recognized*
• CCC
• CE
* All fuses have been tested at 318 Vac. Consult Bussmann series product
representative for UL Recognized status.
