NON and NOS Class K5/H general purpose onetime fuses

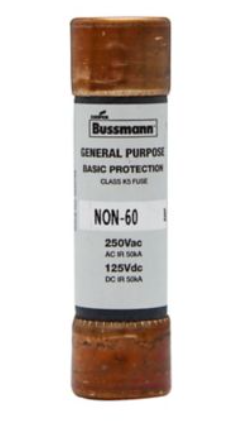

General purpose, Class K5 and H non-current-limiting fuse 250 V

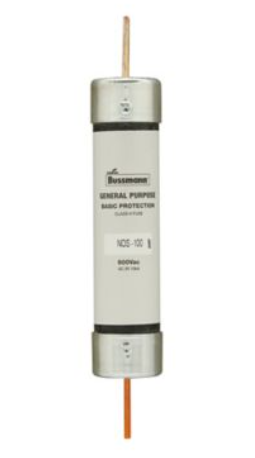

NON and 600 V NOS fuses. For superior electrical protection.

Ratings
• Volts
• NON
− 250 Vac
− 125 Vdc (0-100 A)
• NOS
− 600 Vac
• Amps 1/8-600 A
• IR
• 50 kA RMS Sym. (NON and NOS 0-60 A)
• 10 kA RMS Sym. (NON and NOS 65-600 A)
• 50 kA @ 125 Vdc (NON 0-60 A)
• 10 kA @ 125 Vdc (NON 65-100 A)
Agency information
• UL Listed
• 250 V Class K5 (0-60 A), Std 248-9, Class H (65-600 A),
Std 248-6, (125 Vac, NON 0-100 A)
• 600 V Class K5 (0-60 A), Std 248-9, Class H (70-600 A),
Std 248-6, Guide JDDZ, File E4273
• CSA Certified
• 250 V (0-12, 65-600 A)†
• 600 V (0-600 A), Class 1421-01, File 53787
• CE
