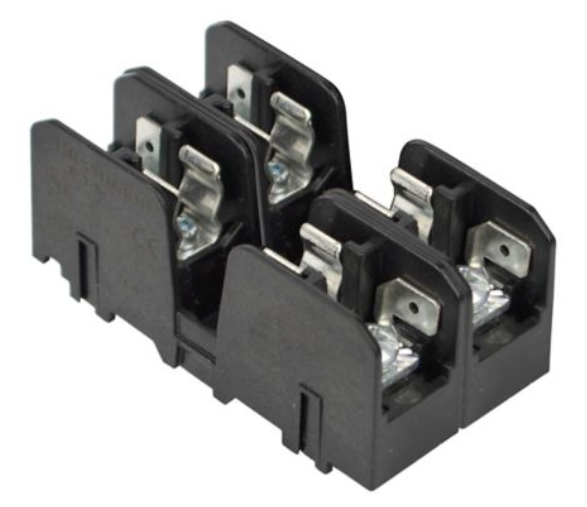

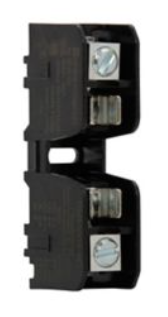

BCM (Class CC) and BMM (supplemental 13/32 x 1-1/2” /10x38mm) modular style fuse blocks with optional covers.
The BCM and BMM modular
fuse blocks contain features that
add versatility, reduce labor and
enhance safety of any panel
design. Optional IP20 finger-safe
covers enhance safety with a
lockout/tagout feature along with
optional open fuse indication to
speed troubleshooting.
fuse blocks contain features that
add versatility, reduce labor and
enhance safety of any panel
design. Optional IP20 finger-safe
covers enhance safety with a
lockout/tagout feature along with
optional open fuse indication to
speed troubleshooting.
Ratings
• Volts 600 Vac/dc
• Amps 30 A
• SCCR up to 200 kA*
* Limited by fuse interrupting rating
Agency information
• Class CC BCM blocks
• UL Listed E14853 - IZLT
• CSA Certified 47235-6225-01
• RoHS Compliant
• 13/32” x 1-1/2” BMM blocks
• UL Recognized, E14853 - IZLT2
• CSA Certified 47235-6225-01
• CE
• RoHS compliant
• Volts 600 Vac/dc
• Amps 30 A
• SCCR up to 200 kA*
* Limited by fuse interrupting rating
Agency information
• Class CC BCM blocks
• UL Listed E14853 - IZLT
• CSA Certified 47235-6225-01
• RoHS Compliant
• 13/32” x 1-1/2” BMM blocks
• UL Recognized, E14853 - IZLT2
• CSA Certified 47235-6225-01
• CE
• RoHS compliant
