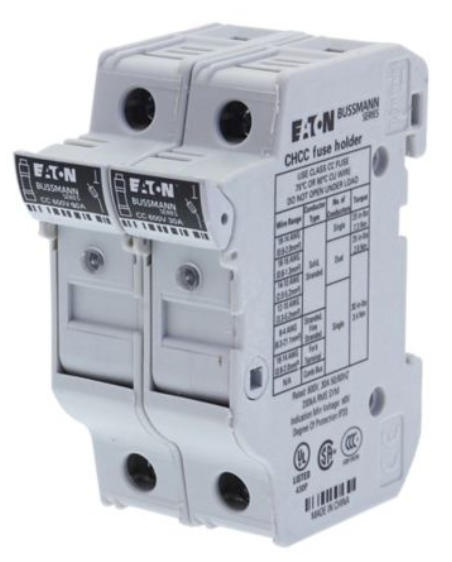

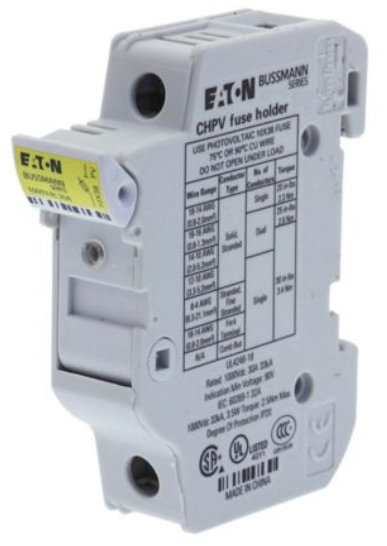

CH modular, IP20 finger-safe DIN-Rail holders for Class CC, midget and PV fuses
Bussmann series CH DIN-Rail fuse
holders are for UL Class CC and
midget fuses, and IEC 10x38mm
fuses. They are available with and
without indication in 1-, 2- and 3-pole
IP20 finger-safe versions. A variety of
accessories extends their application
flexibility and they may be ganged
together to meet specific application
requirements.
holders are for UL Class CC and
midget fuses, and IEC 10x38mm
fuses. They are available with and
without indication in 1-, 2- and 3-pole
IP20 finger-safe versions. A variety of
accessories extends their application
flexibility and they may be ganged
together to meet specific application
requirements.
Ratings
• Volts
• 600 V (or less) UL
• 690 V (or less) IEC
• 1000 Vdc (or less) photovoltaic (PV)
• Amps
• 30 A UL
• 32 A IEC
• SCCR
• 33 kA photovoltaic
• 200 kA RMS Sym. (CHCC, CHM*)
* CHM SCCR is fuse interrupting rating dependent.
Agency information
• CHCC, CHM; UL Listed Guide IZLT, Recognized Guide IZLT2, File
E14853
• CHPV, UL Listed to 4248-19, Guide IZMR, File E348242
• CSA File 47235, CHPV and CHM - Class 6225-30, CHCC - Class
6225-01
• IEC 60269-2 (CHM, CHPV)
• CCC
• RoHS compliant
• CE
