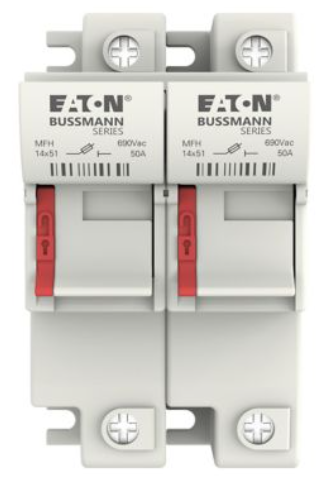

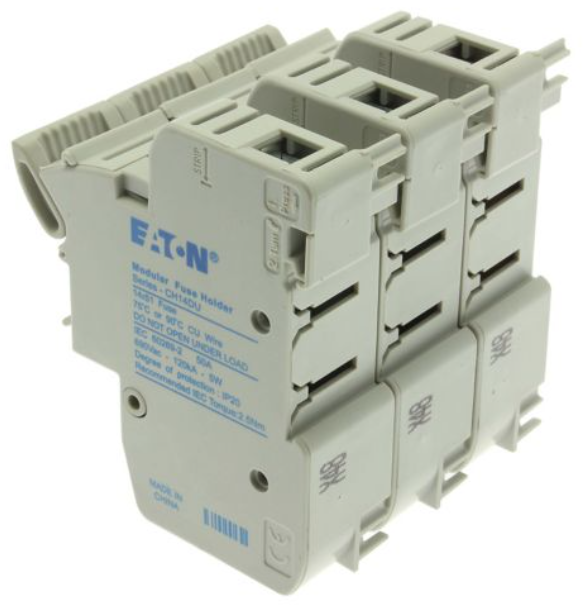

CH14 modular fuse holders for 14x51mm fuses

Bussmann series 14x51mm modular fuse holders are suitable
for use with standard cylindrical fuses and high speed FW type
ferrule fuses. With DIN-Rail or panel mount flexibility, their compact
dimensions helps reduce space, allows for higher cable bending
radius. Low watts loss and wide range of accessories make them
ideally suited for most industrial applications.
Ratings
• Volts
• 690 Vac/750 Vdc (IEC)
• 700 Vac (UL)
• Amps
• 50 A
• SCCR
• 120 kA AC
• 10 kA DC (PV only)
• Power acceptance
• 5 W to IEC 60269-2 (rated)
• 6.2 W (max)
• Rated impulse withstand voltage (Uimp)
• 6 kV
• Microswitch (IEC)
• 250 Vac / 5 A
Agency information
• IEC 60269-1 and 2, UL Listed File E14853, CCC (UL/IEC)
• IEC 60269-1 and 2, UL Listed File E348242, CCC (PV)
• RoHS compliant
