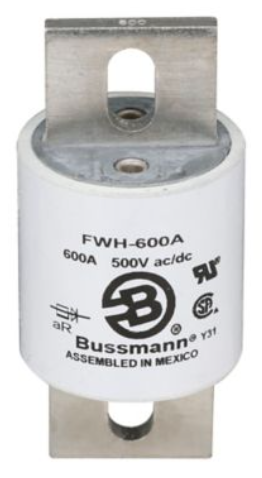

FWH — North American 500 Vac/dc (UL)
North American style bolted tags high speed fuses, for the protection
of DC common bus, power converters/rectifiers and reduced rated
voltage starters.
of DC common bus, power converters/rectifiers and reduced rated
voltage starters.
Ratings
• Volts
• 500 Vac (UL)
• 500 Vdc (35-800 A only)
• Amps 35-1600 A
• IR
• 200 kA RMS Sym.
• 50 kA at 500 Vdc
Agency information
• UL Recognized, JFHR2, E91958, FWH-_B (35-200 A) and FWH-_A
(1000 and 1200 A), JFHR2, E56412 FWH-_A (225-800 A)
• CSA Class 1422-30, File 53787 (35-1600 A)
• CE
Dimensions —
• Volts
• 500 Vac (UL)
• 500 Vdc (35-800 A only)
• Amps 35-1600 A
• IR
• 200 kA RMS Sym.
• 50 kA at 500 Vdc
Agency information
• UL Recognized, JFHR2, E91958, FWH-_B (35-200 A) and FWH-_A
(1000 and 1200 A), JFHR2, E56412 FWH-_A (225-800 A)
• CSA Class 1422-30, File 53787 (35-1600 A)
• CE
Dimensions —
