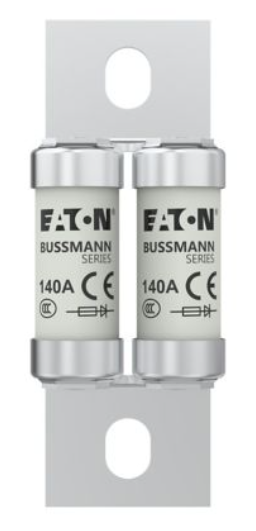

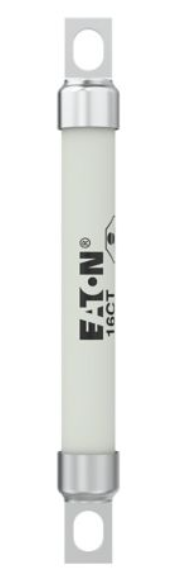

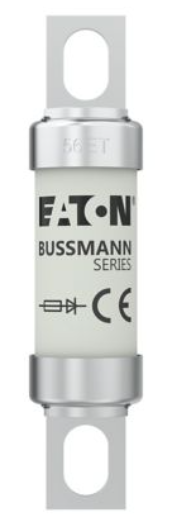

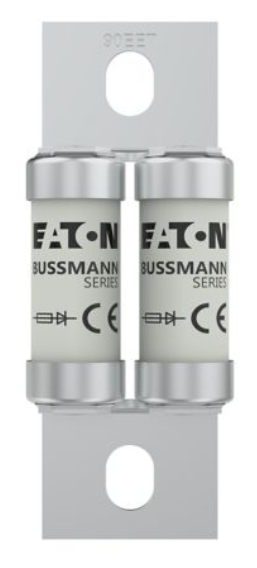

CT, ET, FE, EET, FEE BS88
BS88 style bolted tags high speed fuses for the protection of DC
common bus, DC drives, power converters /rectifiers and reduced
rated voltage starters.
common bus, DC drives, power converters /rectifiers and reduced
rated voltage starters.
Ratings
• Volts
• 690 Vac/500 Vdc (IEC)
• 700 Vac/500 Vdc (UL)
• Amps 6-200 A
• IR
• CT: IEC — 90 kA RMS Sym., 40 kA at 500 Vdc,
UL — 200 kA RMS Sym., 50 kA at 500 Vdc
• ET, EET, FE and FEE: 200 kA RMS Sym.,50 kA at 500 Vdc
Operating class aR
Agency information
• Designed and tested to BS88 part 4 and IEC 60269 Part 4
• UL Recognized*
• CCC for ET, FE, EET, FEE
• CE
* Consult your Bussmann series product representative for UL Recognized status.
