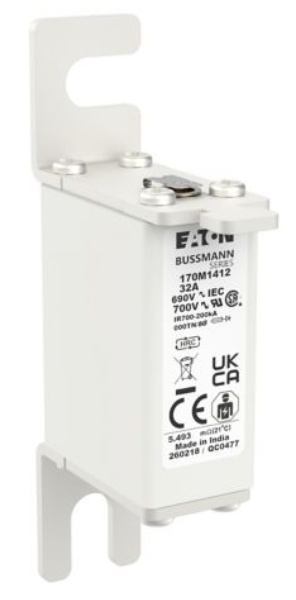

170M — Square Body size 000 and 00, DIN 43653
Square body DIN 43653 bolted tags high speed fuses, for the
protection of DC common bus, DC drives, power converters/
rectifiers and reduced rated voltage starters. Available with and
without visual indicator, and Type T indicator for a microswitch.
protection of DC common bus, DC drives, power converters/
rectifiers and reduced rated voltage starters. Available with and
without visual indicator, and Type T indicator for a microswitch.
Ratings
• Volts
• 690 Vac (IEC, size 000 and 00)
• 700 Vac (UL, size 000; size 00 100-400 A only)
• 700 Vdc (UL, size 000)
• Amps 10-400 A
• IR
• 200 kA RMS Sym.
• 50 kA at 700 Vdc (size 000 only)
Operating class
• gR - size 000 (10-63 A), size 00 (25-80 A)
• aR - size 000 (>63 A), size 00 (>80 A)
Agency Information
• Designed and tested to IEC 60269 Part 4
• UL Recognized, JFHR2, E125085
• CSA Class 53787, File 1422-30 on size 000
• CCC
• CE
• Volts
• 690 Vac (IEC, size 000 and 00)
• 700 Vac (UL, size 000; size 00 100-400 A only)
• 700 Vdc (UL, size 000)
• Amps 10-400 A
• IR
• 200 kA RMS Sym.
• 50 kA at 700 Vdc (size 000 only)
Operating class
• gR - size 000 (10-63 A), size 00 (25-80 A)
• aR - size 000 (>63 A), size 00 (>80 A)
Agency Information
• Designed and tested to IEC 60269 Part 4
• UL Recognized, JFHR2, E125085
• CSA Class 53787, File 1422-30 on size 000
• CCC
• CE
