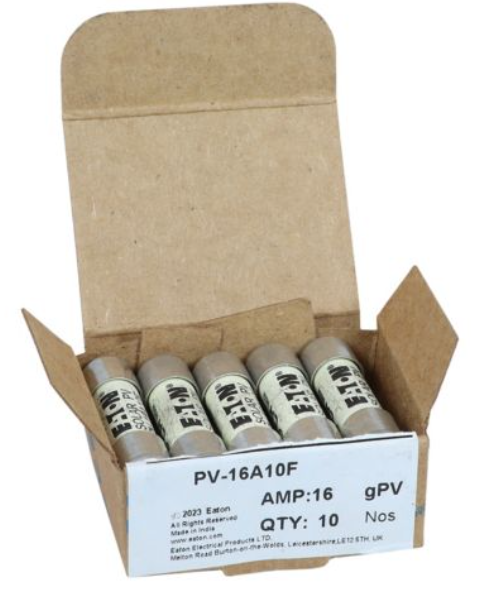

PV 1000 Vdc 10x38mm PV fuses

A range 10x38mm, 1000 Vdc PV fuses
for the protection and isolation of
photovoltaic strings that are specifically
designed for use in PV systems with
extreme ambient temperature, high
cycling and low fault current conditions
(reverse current, multi-array fault)
string arrays. For application flexibility,
the PV 10x38mm fuse is available as
a cylindrical fuse as well as bolt-on,
single and dual PCB tab and in-line
crimp terminal versions.
Ratings
• Volts 1000 Vdc
• Amps 1-20 A
• IR 50 kA
Terminals and conductors
• Crimp connection for single, 75°C/90°C Cu Stranded 12-8 AWG
PV wire
Agency information
• UL Listed to 248-19†, Guide JFGA, File E335324, IEC 60269-6
(gPV), CSA File 53787, Class 1422-30 (1-15A), 20 A Pending, CCC
(1-20 A), RoHS Compliant
