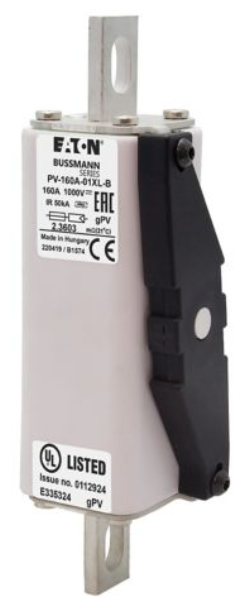

XL 1000 Vdc and 1500 Vdc PV fuses
A range of XL size PV fuses specifically designed for protecting
and isolating photovoltaic array combiners and disconnects. These
fuses are capable of interrupting low overcurrents associated with
faulted PV systems (reverse current, multi-array fault). Optional
microswitches available for use in monitoring systems.
Ratings
• Volts
• 1000 Vdc (63-600 A)
• 1500 Vdc (50-500 A)
• Amps (see table)
• IR (see table)
Agency information
• UL 248-19, Guide JFGA, File E335324, IEC 60269-6 gPV,
CSA Class 1422-30, File 53787, RoHS Compliant
and isolating photovoltaic array combiners and disconnects. These
fuses are capable of interrupting low overcurrents associated with
faulted PV systems (reverse current, multi-array fault). Optional
microswitches available for use in monitoring systems.
Ratings
• Volts
• 1000 Vdc (63-600 A)
• 1500 Vdc (50-500 A)
• Amps (see table)
• IR (see table)
Agency information
• UL 248-19, Guide JFGA, File E335324, IEC 60269-6 gPV,
CSA Class 1422-30, File 53787, RoHS Compliant
Features
• High DC voltage rating with fast-acting protection under low fault
current conditions for PV systems
• Blade or bolt-on mounting for application flexibility
• Demonstrated performance in extreme temperature cycling
conditions
Typical applications
• Recombiner boxes, Inverters
• High DC voltage rating with fast-acting protection under low fault
current conditions for PV systems
• Blade or bolt-on mounting for application flexibility
• Demonstrated performance in extreme temperature cycling
conditions
Typical applications
• Recombiner boxes, Inverters
