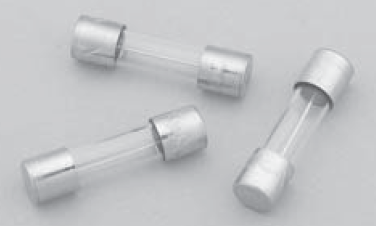

S500 ferrule (GDB†) and S500-V axial lead fast-acting, low breaking capacity 5x20 mm glass tube fuses

Ratings
• Volts
• 250 Vac (or less)
• 32 Vdc (self certified)
• Amps 32mA-10 A
• IR
• 35 A (32mA-3.15 A)
• 40 A (4 A)
• 63 A (6.3 A)
• 80 A (8 A)
• 100 A (10 A)
Agency information
• cURus, SEMKO, VDE, BSI, IMQ, CCC, RoHS compliant, CE
• Agency information not applicable to all ratings; see data sheet for
details.
