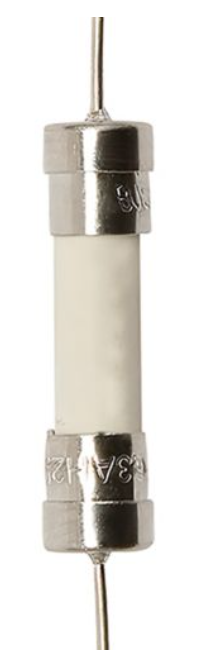

S501 ferrule (GDA†) and S501-V Axial lead fast-acting high breaking capacity 5x20 mm ceramic tube fuses

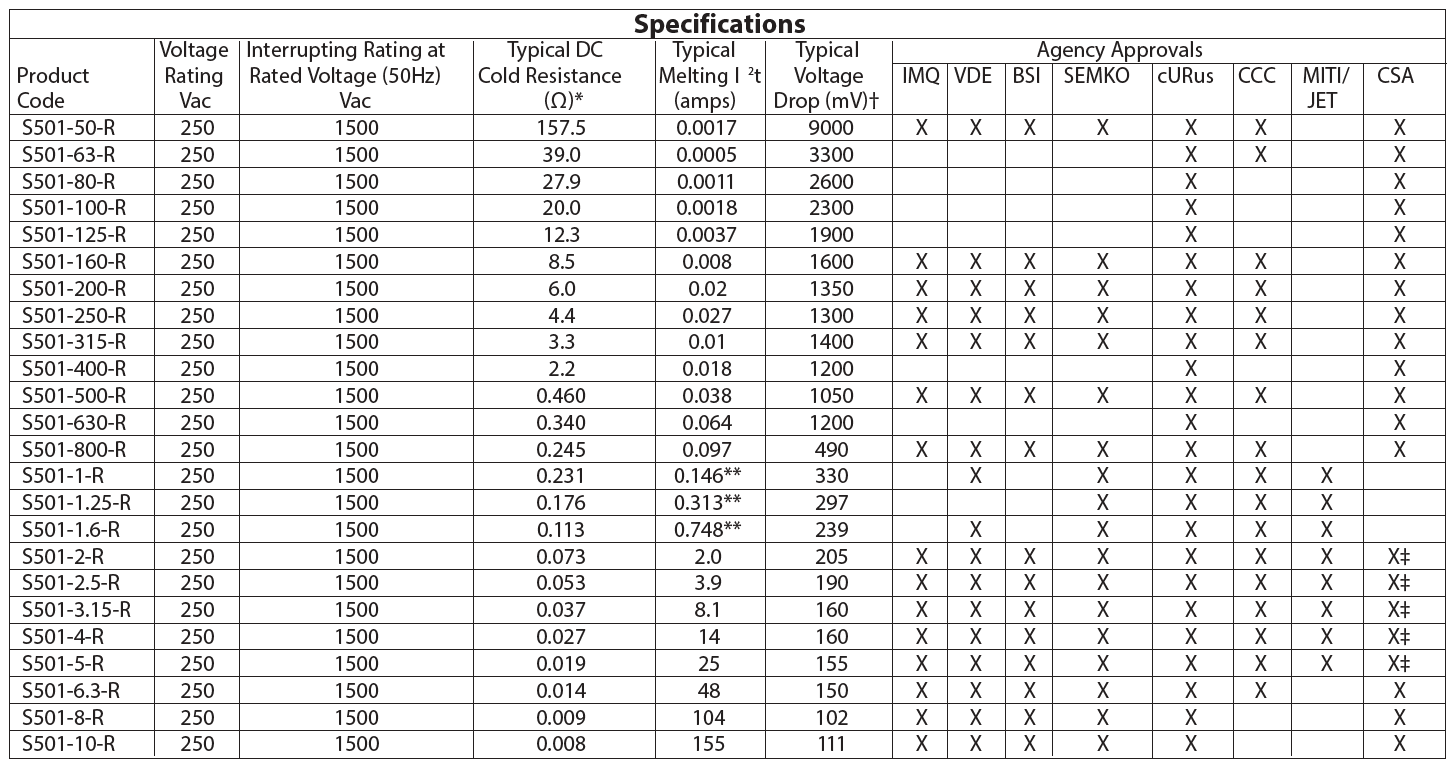

Ratings
• Volts
• 250 Vac (or less)
• 32 Vdc (self certified)
• Amps 50mA-10 A**
• IR 1500 A @ 250 Vac
Agency information
• cURus, SEMKO, VDE, IMQ, CCC, CSA, BSI, MITI/JET,
RoHS compliant, CE
• Agency information not applicable to all ratings, see data sheet for
details.
• Volts
• 250 Vac (or less)
• 32 Vdc (self certified)
• Amps 50mA-10 A**
• IR 1500 A @ 250 Vac
Agency information
• cURus, SEMKO, VDE, IMQ, CCC, CSA, BSI, MITI/JET,
RoHS compliant, CE
• Agency information not applicable to all ratings, see data sheet for
details.
Features
• Fast-acting for maximum protection
• High break capacity for use in higher fault energy electronic
circuitry
• Conforms to IEC standards
Typical applications
• Electronic circuits
• Fast-acting for maximum protection
• High break capacity for use in higher fault energy electronic
circuitry
• Conforms to IEC standards
Typical applications
• Electronic circuits
