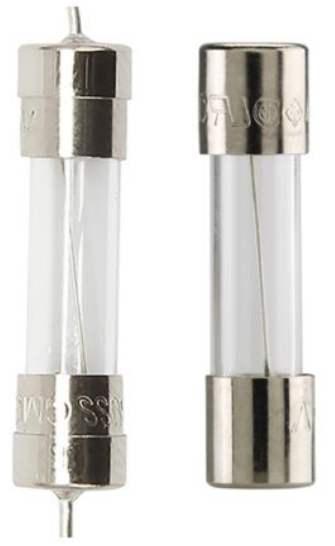

GMC ferrule and GMC-V axial lead medium time-delay 5x20 mm glass tube fuses
Ratings
• Volts
• 250 Vac (63mA-3.15 A)
• 125 Vac (3.5-10 A)
• 32 Vdc (self certified)
• Amps 63mA-10 A
• IR
• 35 A (63mA-1 A @ 250 Vac, p.f. = 0.7-0.8)
• 10 kA (63mA-6 A @ 125 Vac, p.f. = 0.7-0.8)
• 100 A (1.25-3.15 A @ 250 Vac, p.f. = 0.7-0.8)
• 200 A (6.3-10 A @ 125 Vac, p.f. = 1.0)
• Volts
• 250 Vac (63mA-3.15 A)
• 125 Vac (3.5-10 A)
• 32 Vdc (self certified)
• Amps 63mA-10 A
• IR
• 35 A (63mA-1 A @ 250 Vac, p.f. = 0.7-0.8)
• 10 kA (63mA-6 A @ 125 Vac, p.f. = 0.7-0.8)
• 100 A (1.25-3.15 A @ 250 Vac, p.f. = 0.7-0.8)
• 200 A (6.3-10 A @ 125 Vac, p.f. = 1.0)
Agency information
• UL Listed, Std. 248-14, Guide JDYX, File E19180 up to 6.3 A, UL
Recognized, Guide JDYX2, File E19180 7-10 A, CSA Certified,
Class 1422-01, File 53787 up to 6.3 A, MITI Approval, 1-10 A, KC,
RoHS compliant, CE
• KC not applicable to all ratings; see data sheet for details
Features
• Conforms to UL standards
Typical applications
• Electronic circuits
• UL Listed, Std. 248-14, Guide JDYX, File E19180 up to 6.3 A, UL
Recognized, Guide JDYX2, File E19180 7-10 A, CSA Certified,
Class 1422-01, File 53787 up to 6.3 A, MITI Approval, 1-10 A, KC,
RoHS compliant, CE
• KC not applicable to all ratings; see data sheet for details
Features
• Conforms to UL standards
Typical applications
• Electronic circuits
