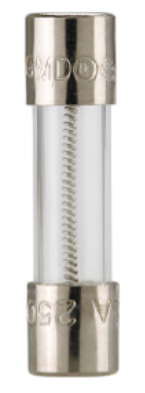

GMD ferrule and GMD-V axial leads time-delay 5x20 mm glass tube fuses
Ratings
• Volts
• 250 Vac
• 32 Vdc (self certified)
• Amps 125mA-4 A
• IR
• 10 kA (125mA-3 A @ 125 Vac, p.f. = 0.7-0.8)
• 10 kA (4 A @ 125 Vac, p.f. = 1.0)
• 35 A (125mA-1 A @ 250 Vac, p.f. = 0.7-0.8)
• 100 A (1.2-3. A @ 250 Vac, p.f. = 0.7-0.8)
• 200 A (4 A @ 250 Vac, p.f. = 1.0)
• Volts
• 250 Vac
• 32 Vdc (self certified)
• Amps 125mA-4 A
• IR
• 10 kA (125mA-3 A @ 125 Vac, p.f. = 0.7-0.8)
• 10 kA (4 A @ 125 Vac, p.f. = 1.0)
• 35 A (125mA-1 A @ 250 Vac, p.f. = 0.7-0.8)
• 100 A (1.2-3. A @ 250 Vac, p.f. = 0.7-0.8)
• 200 A (4 A @ 250 Vac, p.f. = 1.0)
Agency information
• UL Listed Guide JDYX, File E19180, UL Recognized Card (4 A),
Guide JDYX2, File E19180, 4 A, CSA Certified, Class 1422-01, File
53787, PSE/JET, File 1641-31003-1001, RoHS complaint, CE
• Agency information not applicable to all ratings; see data sheet for
details
Features
• Time-delay for inductive circuits
• Conforms to UL standards
Typical applications
• Electronic circuits
• UL Listed Guide JDYX, File E19180, UL Recognized Card (4 A),
Guide JDYX2, File E19180, 4 A, CSA Certified, Class 1422-01, File
53787, PSE/JET, File 1641-31003-1001, RoHS complaint, CE
• Agency information not applicable to all ratings; see data sheet for
details
Features
• Time-delay for inductive circuits
• Conforms to UL standards
Typical applications
• Electronic circuits
