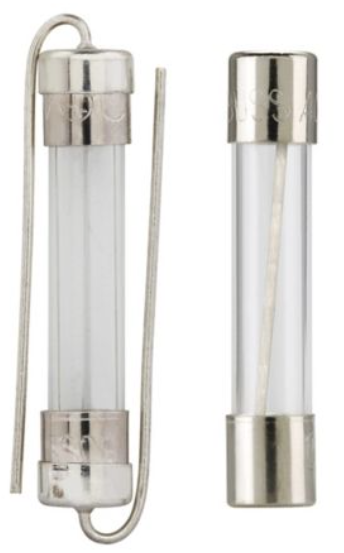

AGC ferrule and AGC-V axial lead fast-acing 1/4" x 1-1/4˝ glass tube fuses
Ratings
• Volts
• 250 Vac (1/20-10 A)
• 32 Vac (12-40 A)
• 32 Vdc (self certified)
• Amps 1/20-40 A
• IR
• 35 A (1/20-1 A @ 250 Vac)
• 100 A (11/4-3 A @ 250 Vac)
• 200 A (4-10 A @ 250 Vac)
• 10 kA (1/20-10 A @ 125 Vac)
• 1000 A (12-40 A @ 32 Vac)
• Volts
• 250 Vac (1/20-10 A)
• 32 Vac (12-40 A)
• 32 Vdc (self certified)
• Amps 1/20-40 A
• IR
• 35 A (1/20-1 A @ 250 Vac)
• 100 A (11/4-3 A @ 250 Vac)
• 200 A (4-10 A @ 250 Vac)
• 10 kA (1/20-10 A @ 125 Vac)
• 1000 A (12-40 A @ 32 Vac)
Agency information
• UL Listed, Guide JDYX, File E19180, up to 10 A, UL Recognized,
Guide JDYX2, File E19180, 12-30 A, CSA Certified, Class 1422-
01, CSA Component Acceptance Card, Class No. 1422-30, RoHS
compliant, CE
Features
• Original electronic glass tube fuse
• Fast-acting for maximum protection
• Wide amp/volt ratings allow versatility of protecting electronic
circuits
Typical applications
• Electronic circuits
• UL Listed, Guide JDYX, File E19180, up to 10 A, UL Recognized,
Guide JDYX2, File E19180, 12-30 A, CSA Certified, Class 1422-
01, CSA Component Acceptance Card, Class No. 1422-30, RoHS
compliant, CE
Features
• Original electronic glass tube fuse
• Fast-acting for maximum protection
• Wide amp/volt ratings allow versatility of protecting electronic
circuits
Typical applications
• Electronic circuits
