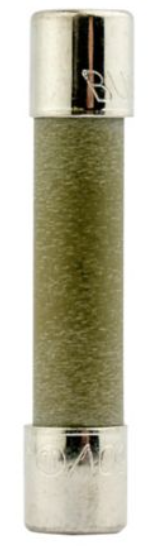

ABC ferrule and ABC-V axial leads fast-acting 1/4" x 1-1/4˝ ceramic tube fuse
Ratings
• Volts
• 250 Vac/125 Vdc (1/4-15 A, 20-30 A)*
• 250 Vac (18 A)
• 32 Vdc (self certified)
• Amps 1/4-30 A
• IR**
• 35 A (1/4-1 A @ 250 Vac)
• 100 A (11/2-3 A @ 250 Vac)
• 200 A (4-10 A @ 250 Vac)
• 750 A (12-15 A @ 250 Vac)
• 400 A (18-20 A @ 250 Vac)
• 10 kA (1/4-15 A @ 125 Vac)
• 1 kA (18-30 A @ 125 Vac)
• 10 kA (1/4-15, 20 A @ 125 Vdc)
• 400 A (25-30 A @ 125 Vdc)
• 200 A (25-30 A @ 250 Vac)
• Volts
• 250 Vac/125 Vdc (1/4-15 A, 20-30 A)*
• 250 Vac (18 A)
• 32 Vdc (self certified)
• Amps 1/4-30 A
• IR**
• 35 A (1/4-1 A @ 250 Vac)
• 100 A (11/2-3 A @ 250 Vac)
• 200 A (4-10 A @ 250 Vac)
• 750 A (12-15 A @ 250 Vac)
• 400 A (18-20 A @ 250 Vac)
• 10 kA (1/4-15 A @ 125 Vac)
• 1 kA (18-30 A @ 125 Vac)
• 10 kA (1/4-15, 20 A @ 125 Vdc)
• 400 A (25-30 A @ 125 Vdc)
• 200 A (25-30 A @ 250 Vac)
Agency information
• UL Listed, Std. 248-14, Guide JDYX File E19180 up to 15 A; UL
Recognized, Guide JDYX2, File E19180, 18-30 A; CSA Certified,
Class 1422-01 and 1422-30, File 53787, RoHS compliant, CE
Features
• Ceramic body allows for higher amp/volt rating combinations
Typical applications
• Electronic circuits
• UL Listed, Std. 248-14, Guide JDYX File E19180 up to 15 A; UL
Recognized, Guide JDYX2, File E19180, 18-30 A; CSA Certified,
Class 1422-01 and 1422-30, File 53787, RoHS compliant, CE
Features
• Ceramic body allows for higher amp/volt rating combinations
Typical applications
• Electronic circuits
