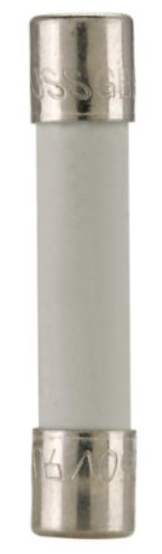

GBB ferrule and GBB-V axial lead very-fast-acting 1/4" x 1-1/4˝ ceramic tube fuses
Ratings
• Volts 250 Vac/125 Vdc
• Amps 1-30 A
• IR
• 200 A @ 250 Vac
• 200 A (20-30 A @ 125 Vac/dc)
• 10 kA (1-15 A @ 125 Vac/dc)
• Volts 250 Vac/125 Vdc
• Amps 1-30 A
• IR
• 200 A @ 250 Vac
• 200 A (20-30 A @ 125 Vac/dc)
• 10 kA (1-15 A @ 125 Vac/dc)
Agency information
• UL Recognized, Std. 248-14, Guide JFHR2, File E56412,
CSA Component Acceptance Class 1422-30, File 53787,
RoHS complaint, CE
Features
• Very fast-acting performance allows protection of highly sensitive
electronic circuitry
Typical applications
• Electronic circuits
• UL Recognized, Std. 248-14, Guide JFHR2, File E56412,
CSA Component Acceptance Class 1422-30, File 53787,
RoHS complaint, CE
Features
• Very fast-acting performance allows protection of highly sensitive
electronic circuitry
Typical applications
• Electronic circuits
